CS-28/CT764 Kit

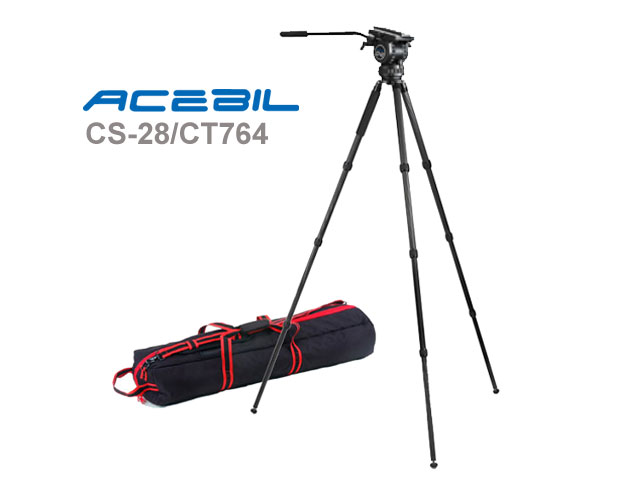

CH2 / CT764 / S-42The CS-28/CT764 Professional Tripod System includes a 75mm CH2 fluid head, CT764 carbon fiber tripod, and an S-42 carry case.

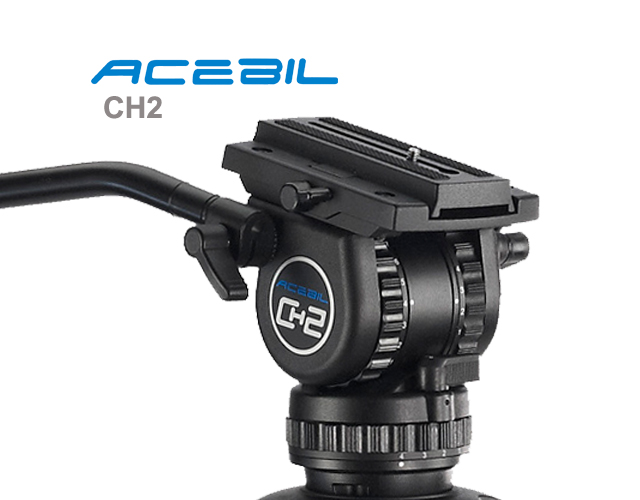

The CS-28/CT764 Professional Tripod System includes a 75mm CH2 fluid head, CT764 carbon fiber tripod, and an S-42 carry case. The tripod features a three-stage design and carbon fiber construction that supports loads up to 10kg / 22lb. It provides a height range from 36cm-175cm / 14.2"-68.9" and comes equipped with a sliding quick-release plate and pan bar.
- 75mm ball
- Three Stage Carbon Fiber Tripod
- Supports loads up to 10kg / 22lb
- Height range: 36cm-175cm / 14.2"-68.9"
| Payload | 10kg / 22lb |
|---|---|

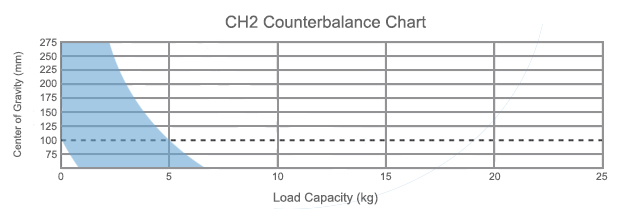

| CB Payload | 0-8kg / 0-17.6lb |
| Counter Balance | 6 Steps |
| Pan Drag | Free + 4 Steps |
| Tilt Drag | Free + 4 Steps | Tilt Angle | +90° / -70° |
| LED Bubble Level Illumination | No |
| Camera Plate | Slide Plate |
| Plate Attachment | 1/4-20" Screw |
| Spare Camera Screw | 3/8" Screw | Slide Range | +50 / -50 mm |
| Weight | 4.6kg / 10lb |
| Height | 36cm-175cm / 14.2"-68.9" |
| Ball Diameter | 75mm |
| Leg Section | 3 Stage |
