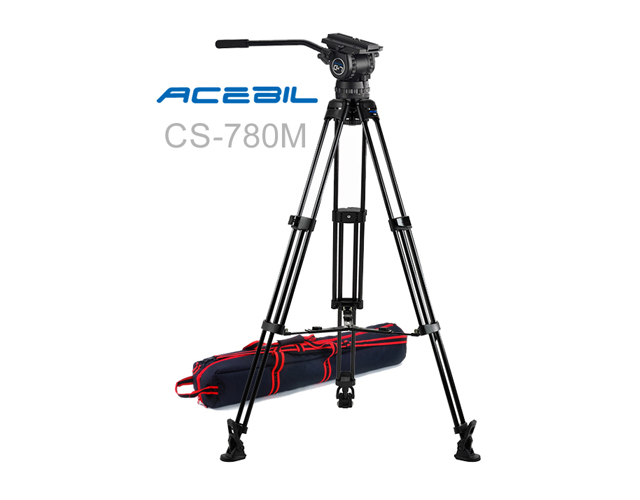

CS-780M Kit
CH7 / T1000 / MS-5 / S-50The CS-680M Professional Tripod System includes a 100mm CH7 fluid head, T1000 aluminum tripod, MS-5 mid spreader, and an S-50 carry case.
The CS-780M Professional Tripod System from Acebil includes a 100mm CH7 fluid head, T1000 aluminum tripod, MS-5 mid spreader, and an S-50 carry case. The tripod features a single-stage design and aluminum construction that supports loads up to 18kg / 39.6lb. It provides a height range from 100-161cm / 39.4”-63.4” and comes equipped with a sliding quick-release plate and pan bar.
- 100mm ball
- Single Stage Aluminum Tripod
- Supports loads up to 18kg / 39.6lb
- Height range: 100-161cm / 39.4”-63.4”
| Payload | 18kg / 39.6lb |
|---|---|
| CB Payload | 4~15kg / 8.8~33.0lb |
| Counter Balance | Free + 8 Steps |
| Pan Drag | Free + 6 Steps |
| Tilt Drag | Free + 6 Steps | Tilt Angle | +90° / -70° |
| LED Bubble Level Illumination | Yes |
| Camera Plate | Slide Plate |
| Plate Attachment | 3/8" Screw |
| Spare Camera Screw | 1/4" & 3/8" Screw | Slide Range | +60 / -60 mm |
| Weight | 6.4kg / 14.1lb |
| Height | 100-161cm / 39.4”-63.4” |
| Ball Diameter | 100mm |
| Leg Section | 1 Stage |
