CS-XCG Kit

CHX / T3002C / GS-5 / SC-110

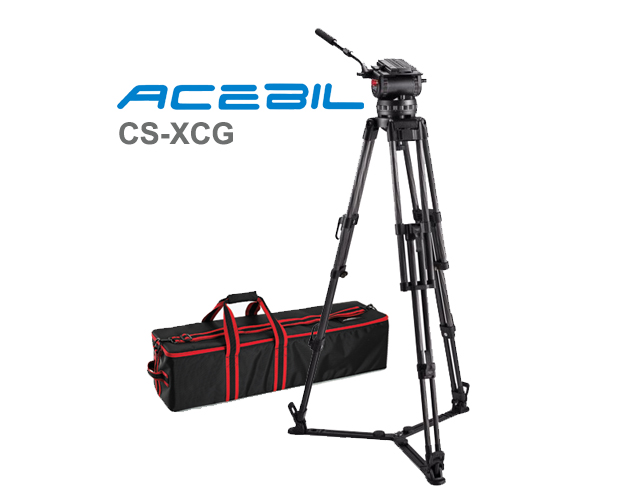

The CS-XCG Professional Tripod System includes a 150mm CHX fluid head, T3002C carbon fiber tripod, GS-5 ground spreader, and an SC-110 carry case.


The CS-XCG Professional Tripod System from Acebil includes a 150mm CHX fluid head, T3002C carbon fiber tripod, GS-5 ground spreader, and an SC-110 carry case. The tripod features a two-stage design and Carbon Fiber construction that supports loads up to 45kg / 99lb. It provides a height range from 63-171cm / 24.8”-67.4” and comes equipped with a sliding quick-release plate and pan bar.

  • 150mm ball
  • Two Stage Carbon Fiber Tripod
  • Supports loads up to 45kg / 99lb
  • Height range: 76-180cm / 30.0”-70.9”

Payload 45kg / 99lb
CB Payload 21-36kg / 46~79lb
Counter Balance 8 Steps + 4 Position
Pan Drag Free + 8 Steps
Tilt Drag Free + 8 Steps
Tilt Angle +90° / -75°
LED Bubble Level Illumination Yes
Camera Plate Slide Plate
Plate Attachment 3/8" Screw
Spare Camera Screw 1/4" & 3/8" Screw
Slide Range +60 / -60 mm
Weight 12.5kg / 27.5lb
Height 76-180cm / 30.0”-70.9”
Ball Diameter 150mm
Leg Section 2 Stage
