PDII-CH8(F)

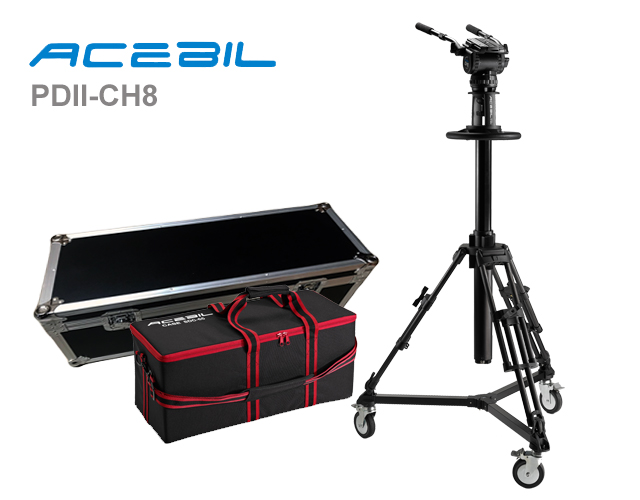

The Acebil PD3800 Pro Pedestal with CH8(F) Head / D-5 Dolly / and Cases is a complete high performance adjustable air pressure pedestal, head, and dolly system that sets up with ease in minutes. Just unfold the pedestal legs onto the dolly, attach the head atop, and you're ready to go. The head features a 100mm ball mount and a sliding camera plate, and it supports a payload of 25kg / 55lb.


The Acebil PD3800 Pro Pedestal with CH8(F) Head / D-5 Dolly / and Cases is a complete high performance adjustable air pressure pedestal, head, and dolly system that sets up with ease in minutes. Just unfold the pedestal legs onto the dolly, attach the head atop, and you're ready to go. The head features a 100mm ball mount and a sliding camera plate, and it supports a payload of 25kg / 55lb. The pedestal is built with an adjustable air pressure column for versitile, consistent reliability and with a column lock knob on the middle spreader to provide you with secure stabilization for extensive shooting. The head comes equipped with an 8 step + 1 Switch counter balance system and with pan and tilt drag functions that employ a simple 0 + 6 step change system for selecting torque. Extendable pan bars and rubber grips help perform smooth and precise camera movements, and an illuminated LED leveling bubble allows for efficient camera set-ups.

  • 100mm ball
  • Adjustable Air Pressure Column
  • Supports loads up to 25kg / 55lb
  • Max Height 73.5in / 187cm
  • Min Height 45in / 116cm
  • Equipped with an 8 step + 1 Switch counter balance system

CH8(F) HEAD
Payload 25kg / 55lb
CB Payload 7~20kg / 15.4~44lb
Counter Balance 8 Steps + 1 Switch
Pan Drag 0+8 Steps
Tilt Drag 0+8 Steps
Tilt Angle +90° / -70°
LED Bubble Level Illumination Yes
Camera Plate Slide Plate
Plate Attachment 3/8" Screw
Spare Camera Screw 1/4" & 3/8" screw
Slide Range +50 / -50 mm
Ball Diameter 100mm
PD3800 PEDESTAL
Payload 40kg / 88lb
Weight 11kg / 24lb
Height Max - 66in / 168cm Min - 38in / 97cm
D-5 DOLLY
Payload 90kg / 200lb
Weight 5.3kg / 11.7lb
Wheel Diameter 125mm
