ST-7R / VST-14 / CH3 / T752 / MS-3 / S-52

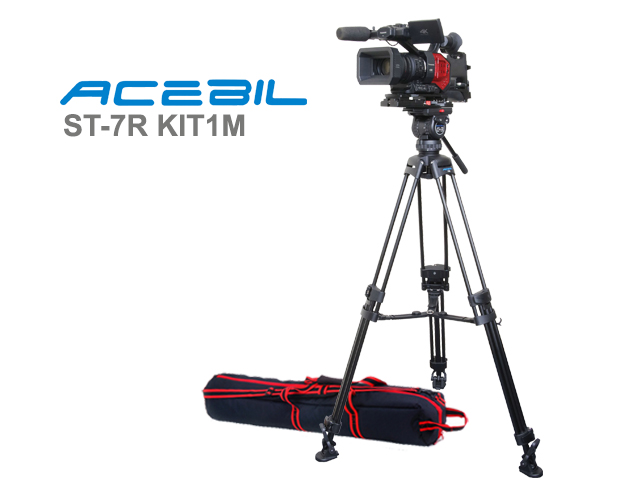

The New ST-7R Mountable Shoulder Adaptor is designed to be the perfect match for the new Panasonic AG-DVX200. Operate it like a shoulder mount camcorder, or mount with the double tripod mounting system for perfect balance on Acebil CS-382M tripod system.

Using a strong aluminium die cast frame makes it very easy to move around the camera. The perfect fit for your hands and direct viewing through the camera view finder. Equipped with 2 built in CamTap outputs, a V-mount battery holder, 2 sets of DC outputs, and BNC junction terminals. The CS-382M Professional Tripod System from Acebil includes a 75mm CH3 fluid head, T752 aluminum tripod, MS-3 mid spreader, and an S-52 carry case. The tripod features a two-stage design and aluminum construction that supports loads up to 9kg / 19.8lb It provides a height range from 81-165cm / 31.9”-65” and comes equipped with a sliding quick-release plate and pan bar.

  • 75mm ball
  • Two Stage Aluminum Tripod
  • Supports loads up to 9kg / 19.8lb
  • Height range: 81-165cm / 31.9”-65”
  • Light Weight Aluminum
  • 2x CamTap Outputs
  • V-mount Battery Holder
  • 2x Sets of DC Outputs
  • BNC Junction Terminals

DC Connection XLR XLR 4pin DC IN×1(12V) / XLR 4pin DC OUT×1(12V)
DC Connection MINI 4P DC OUT×1(12V/8.4V)
Junction BNC terminal 3
Operation Temperature 0℃〜40℃
Storage Temperature -20℃〜60℃
Weight approx - 1.5Kg
CS-382M Tripod
Payload 9kg / 19.8lb
CB Payload 1~7kg / 2.2~15.4lb
Counter Balance Free + 8 Steps
Pan Drag Free + 4 Steps
Tilt Drag Free + 4 Steps
Tilt Angle +90° / -70°
LED Bubble Level Illumination No
Camera Plate Slide Plate
Plate Attachment 1/4-20" Screw
Spare Camera Screw 3/8" Screw
Slide Range +50 / -50 mm
Weight 6.4kg / 14.1lb
Height 81-165cm / 31.9”-65”
Ball Diameter 75mm
Leg Section 2 Stage
